Agriculture and Forestry

Agriculture and Forestry

Some product lines in our range can be used for agricultural and forestry applications. The CHD chain trenchers can perform jobs such as excavating small set-section trenches in natural soil for irrigation networks, or else trenches for fencing installation. Some models of the TF can be used to till rocky areas or, if fitted with special teeth, to remove tree stumps and roots.  VSE screening buckets can screen some types of natural soil to create material in the perfect size for turf underlay or for growing greenhouse fruits and vegetables.

Request information

TF 200

TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
TF 200
Recommended excavator weight (1) 2,5-7 ton 5500-15500 lbs
Weight without bracket  300 kg 660 lbs
Drum width (standard) 565 mm 22 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 50

TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
TFC 50
Width (cutting profile) 370 mm 15 inch
Weight (1) 90 kg 200 lbs
Recommended excavator weight (2) 1,2-3,0 ton 2640-6600 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 200

Features mechanical side shift

T 200
T 200
T 200
T 200
Trench width 25-30-40-50 mm 1-1,2-1,6-2 inch
Trench depth 200 mm 8 inch
Operating weight with standard wheel (1) 270 kg 600 lbs
Required oil flow 35-75 l/min 9-20 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 400

TFV 400
TFV 400
Recommended excavator weight (1) 7-12 ton 15400-26400 lbs
Diameter 380 mm 15 inch
Operating weight (2) 245 kg 540 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90S

Per terreni morbidi.
CHD 90S
CHD 90S
CHD 90S
CHD 90S
Maximum trench depth 900 mm 35 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1) 280 kg 617 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90S B

For soft soils.
Maximum trench depth 900 mm 35 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1)(2) 260 kg 570 lbs
Recommended excavator weight 2,5-4,5 ton 5500-9900 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 400

TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
TF 400
Recommended excavator weight (1) 6-12 ton 13000-26500 lbs
Weight without bracket 470 kg 1050 lbs
Drum width (standard) 625 mm 25 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 100

TFC 100
TFC 100
TFC 100
TFC 100
TFC 100
TFC 100
Width (cutting profile) 480-430 mm 19-17 inch
Weight (1) 170 kg 374 lbs
Recommended excavator weight (2) 2,5-4,5 ton 5600-9900 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 300

Features hydraulic side shift and trench clearing device

T 300
T 300
T 300
T 300
T 300
T 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 665 kg 1460 lbs
Required oil flow 60-115 l/min 16-30 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 600

TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
TFV 600
Recommended excavator weight (1) 10-18 ton 22000-39600 lbs
Diameter 420 mm 17 inch
Operating weight (2) 400 kg 880 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

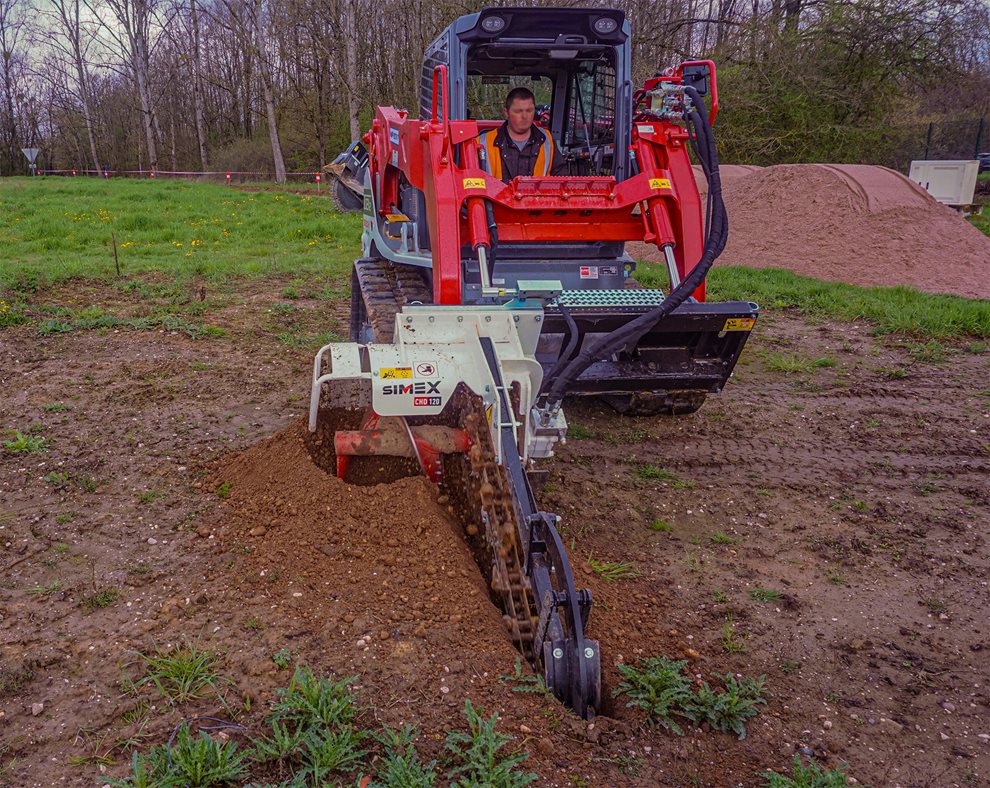

CHD 120S

Per terreni morbidi.
Maximum trench depth 1200 mm 47 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm  4-8 inch
Operating weight (1) 425 kg 936 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120S B

For soft soils.
Maximum trench depth 1200 mm 47 inch
Standard trench width 150 mm 6 inch
Optional trench width 100-200 mm 4-8 inch
Operating weight (1)(2) 425 kg 936 lbs
Recommended excavator weight 4,5-8 ton 9900-17600 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 650

TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
TF 650
Recommended excavator weight (1) 9-16 ton 19800-35200 lbs
Weight without bracket 650 kg 1430 lbs
Drum width (standard) 700 mm 28 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFC 400

TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
TFC 400
Width (cutting profile) 480-430 mm 19-17 inch
Weight (1) 400 kg 8800 lbs
Recommended excavator weight (2) 6-10 ton 13000-22000 lbs
(1) Without mounting bracket to boom.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information Scarica scheda PDF
Close

VSE 10

VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
VSE 10
Recommended excavator weight (1)(2) 8-13 ton 17500-29000 lbs
Bucket capacity (SAE) 0,40 m3 0,52 yd3
Operating weight (3) 965 kg 2125 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TA 300

Ideal for laying fiber optics, fitted with hydraulic lateral tilt allowing  wheel saw to stay vertical in any condition, even when the prime mover is not parallel to the road surface. Also available with conveyor belt.

TA 300
TA 300
Trench width 25-30-50-80 mm 1-1,2-1,6-3,2 inch
Trench depth 300 mm 12 inch
Operating weight with standard wheel (1) 845 kg 1860 lbs
Required oil flow 60-115 l/min 16-30 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 90

For mixed soils.
CHD 90
CHD 90
Max. trench depth 900 mm 35 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1) 715 kg 1575 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TFV 850

TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
TFV 850
Recommended excavator weight (1) 15-25 ton 33000-55000 lbs
Diameter 450 mm 18 inch
Operating weight (2) 570 kg 1255 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(2) Without mounting bracket attaching to prime mover.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 850

TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
TF 850
Recommended excavator weight (1) 14-22 ton 30800-48500 lbs
Weight without bracket 1100 kg 2420 lbs
Drum width (standard) 800 mm 32 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 20

VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
VSE 20
Recommended excavator weight (1)(2) 12-18 ton 26000-40000 lbs
Bucket capacity (SAE) 0,70 m3 0,92 yd3
Operating weight (3) 1400 kg 3080 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 450

Features hydraulic depth adjustment, hydraulic side shift and trench clearing device. Possibility of side discharge of material. Set up for installation of aspiration and conveyor belt.


T 450
T 450
T 450
T 450
Trench width 50-80-100-130-160-200 mm 1,6-3,2-4-5-6,3-8 inch
Trench depth 150-450 mm 6-17 inch
Operating weight with standard wheel (1) 1115 kg 2450 lbs
Required oil flow 100-160 l/min 27-42 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120

For mixed soils.
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
CHD 120
Max. trench depth 1200 mm 47 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1) 780 kg 1715 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 120B

For mixed soils.
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
CHD 120B
Max. trench depth 1200 mm 47 inch
Trench width - standard 150  mm 6 inch
Trench width - optional 200-250 mm 8-10 inch
Operating weight (1)(2) 590 kg 1300 lbs
Recommended excavator size 8-15 ton 17600-33000 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 1100

TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
TF 1100
Recommended excavator weight (1) 20-34 ton 44000-80000 lbs
Weight without bracket  1340 kg 2950 lbs
Drum width (standard) 850 mm 34 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 30

VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
VSE 30
Recommended excavator weight (1)(2) 16-30 ton 35000-66000 lbs
Bucket capacity (SAE) 1,00 m3 1,30 yd3
Operating weight (3) 1845 kg 4060 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 150

For mixed soils.
CHD 150
CHD 150
Max. trench depth 1500 mm 59 inch
Trench width - standard 150 mm 6 inch
Trench width - optional 200 mm 8 inch
Operating weight (1) 830 kg 1830 lbs
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

CHD 150B

For mixed soils.
CHD 150B
CHD 150B
Max. trench depth 1500 mm 59 inch
Trench width - standard 150  mm 6 inch
Trench width - optional 200 mm 8 inch
Operating weight (1)(2) 640 kg 1410 lbs
Recommended excavator size 8-15 ton 17600-33000 lbs
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
2) Pressure must be inversely proportional to the flow rate available and vice versa.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 2100

TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
TF 2100
Recommended excavator weight (1) 28-45 ton 61700-99000 lbs
Weight without bracket 2380 kg 5240 lbs
Drum width (standard) 950 mm 38 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

VSE 40

VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
VSE 40
Recommended excavator weight (1)(2) 30-45 ton 66000-99000 lbs
Bucket capacity (SAE) 1,80 m3 2,35 yd3
Operating weight (3) 2725 kg 6000 lbs
(1) The maximum operating load permitted for the excavator, when added to the weight of the standard bucket, must match or exceed the weight of the bucket at full load.
(2) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.
(3) Without mounting bracket.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 600

Hydraulic depth adjustment, hydraulic side shift, trench clearing device,  side discharge of material. Set up for installation of aspiration and conveyor belt.


T 600
T 600
T 600
T 600
T 600
T 600
T 600
T 600
Trench width 80-100-130-160-200 mm 3,2-4-5-6,3-8 inch
Trench depth 200-600 mm 8-24 inch
Operating weight with standard wheel (1) 1340 kg 2950 lbs
Required oil flow 110-170 l/min 29-45 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 2500

TF 2500
TF 2500
Recommended excavator weight (1) 40-55 ton 88000-121000 lbs
Weight without bracket 2700 kg 5950 lbs
Drum width (HP) 1000 mm 40 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

TF 3100

TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
TF 3100
Recommended excavator weight (1) 50-70 ton 110000-154000 lbs
Weight without bracket  2940 kg 6470 lbs
Drum width (standard) 1250 mm 50 inch
(1) User is responsible for ensuring that the equipment meets the excavator’s specifications and weight requirements.

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close

T 800

Compared to the other models of the T range, the T 800 is fitted with an integrated motor in the wheel that enters the trench and goes down to a depth of 800mm without excessively increasing the wheel diameter. The T 800 is also the only one that can work in reverse.
T 800
T 800
T 800
T 800
T 800
T 800
T 800
T 800
Trench width 250 mm 10 inch
Trench depth 450-800 mm 17-31 inch
Operating weight with standard wheel (1) 1430 kg 3150 lbs
Required oil flow 110-170 l/min 29-50 gpm
1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Request for information
Close
For more information on our attachments, feel free to contact us. We’ll be pleased to respond to any of your requests.
Contact us now

Related news about Agriculture and Forestry

EIMA 2021, 19-23 October
Simex will be at EIMA 2021, the International Exposition of Machinery for Agriculture and Gardening, that will be held from the 19 to 23 October at Bologna Exhibition Centre.

Events
Simex VSE Screening Buckets
Which are the main features and advantages of Simex VSE Screening Buckets? Let's find out
News
TFC 400 published on "Strade & Autostrade"
Last January, TFC 400 has won in Verona the SAMOTER Innovation Award for the attachments category.
News
Simex VSE 20 screening bucket: Screening quality makes the difference in refurbishment of green area
A VSE 20 screening bucket performed soil screening for green areas as part of a major renovation of a rural structure.
News
Simex VSE 20 screening bucket for excavator: refurbishment of green areas
A VSE 20 screening bucket performed soil screening for green areas as part of a major renovation of a rural structure.
Videos
Simex TF 100 at work inside the Langjökull glacier
Two Simex TF 100 cutter heads were key to performing excavation works to create the longest pedestrian tunnel inside a glacier.
News
Simex TF Cutter Heads for excavator working inside the Langjökull glacier, Iceland
Two Simex TF 100 cutter heads were key to performing excavation works to create the longest pedestrian tunnel inside a glacier.
Videos
A Simex CHD 120B gets the root of the problem
The Simex CHD 120B chain trencher stands out from the many models on the market for its impressive structural strength and the use of chains constructed with materials assuring a high resistance to wear.
News
VSE 10: small, productive and versatile
The VSE 10 is the smallest of the Simex range of screening buckets, but it stands out for its versatility and productivity when processing different types of materials.
News
The new TFC 400 and TFC 600 drum cutters
The new TFC 400 and TFC 600 continuous cutting double drum cutter heads now part of the large family of Simex cutter heads currently including 11 models of the TF, TFC and TFV series.
News
More news

Request information

Fields marked with (*) are mandatory.
Sort by: Name Date Size
asso_aemasso_araasso_ara_aedasso_assodimiasso_confindustriaasso_sitebasso_unaceaasso_uniiatt
