RWS/RW/ RWA

Wheel Saws self-leveling

Mini excavator Excavator Skid steer loader Front loader Back hoe loader

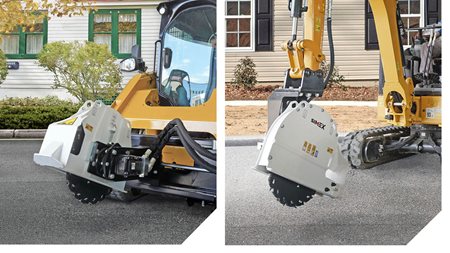

Designed for skid steer mounting, Simex RW and RWA wheel saws provide different solutions for working on hard or compact surfaces such as asphalt, cement and rock: cutting and narrow trenches, set-section trenches, mini- and micro-trenches for  fiber optic cable installation. Full protection of the wheel at any working depth guarantees maximum safety of persons and property.  Self-leveling feature ensures constant trench depth and allows operator excellent visibility in any condition.

Features

  • Clean trench
  • Constant trench depth
  • Max. safety
  • Excellent visibility for operator
  • High cutting force
  • Stability and no vibrations

Models

RWS 400

The innovative RWS can make curved trenches with radii reduced up to 5 m; the special steering unit acts on the axis of the wheel saw to the right and left.


RWS 400
RWS 400
RWS 400
RWS 400
Trench width 50-80-100-120 mm 2-3-4-5 inch
Trench depth 250-400 mm 10-16 inch
Operating weight (1) 1100 kg 2420 lbs
Required oil flow 90-160 l/min 24-43 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Close

RW 500

RW 500
RW 500
RW 500
RW 500
RW 500
RW 500
RW 500
RW 500
RW 500
RW 500
Trench width 50-80-100-120 mm 2-3-4-5 inch
Trench depth 250-500 mm 10-20 inch
Operating weight (1) 1275-1340 kg 2800-2950 lbs
Required oil flow 100-160 l/min 27-43 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Close

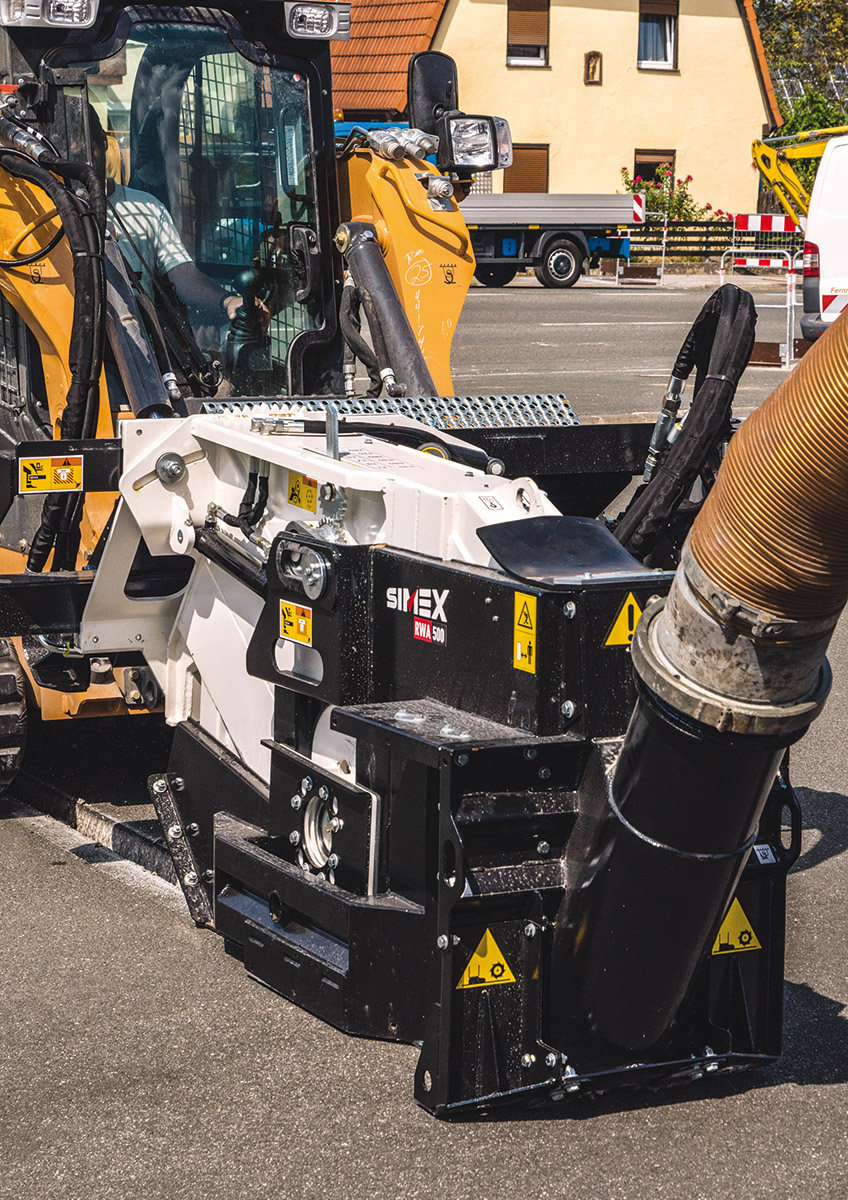

RWA 500

Features hydraulic lateral tilt: maintains wheel saw vertical in any condition. Allows milling near curbs with the wheel saw in vertical position even when the prime mover is not parallel to the road surface, compensating for a difference in level up to 200mm.

RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
RWA 500
Trench width 50-80-100-120 mm 2-3-4-5 inch
Trench depth 250-500 mm 10-20 inch
Operating weight (1) 1300-1400 kg 2860-3080 lbs
Required oil flow 100-160 l/min 27-43 gpm
(1) User is responsible for ensuring that the characteristics of the prime mover suit the weight and specifications of the attachment

Simex does not accept responsibility or liability for the information provided. Technical modifications may vary without prior notice.
These are the standard features, for custom solutions contact us.
Close
For more information on our attachments, feel free to contact us. We’ll be pleased to respond to any of your requests.
Contact us now

Related news about Wheel Saws (RWS/RW/ RWA)

Simex RWA 500 wheel saw for skid steer loader - trenching for fiber optics
The RWA 500 wheel saw is Simex's response to situations where the attachment is not able to work perfectly parallel to the ground. Also, the outlets for the material allow for a clean trench at...
Videos

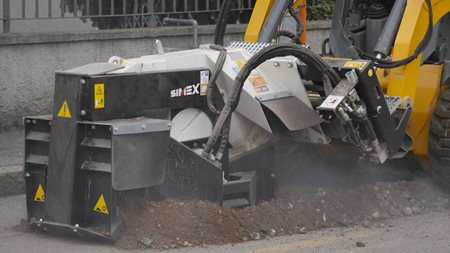

Simex RW 500 Wheel Saw at work in Milan: fiber optic installation
The RW 500 was recently purchased by I.S.A.C srl and chosen for its productivity and precision. We spoke with Corrado Buttò, site manager for I.S.A.C. srl during the excavation of a new fiber optic...
Videos
Simex ready for the fiber optic challenge, also in Germany
In Germany, the implementation of the European directive that requires the installation and upgrading of fiber optic networks by 2020, has given new impetus to public agencies, designers and companies in the telecommunications industry. Simex, the international leader in planers, has long been developing and producing other attachments for trenches for installation of fiber optic networks.
News
Fiber optic installation with Simex Wheel Saws - Germany
In Germany, the implementation of the European directive that requires the installation and upgrading of fiber optic networks by 2020, has given new impetus to public agencies, designers and compan...
Videos

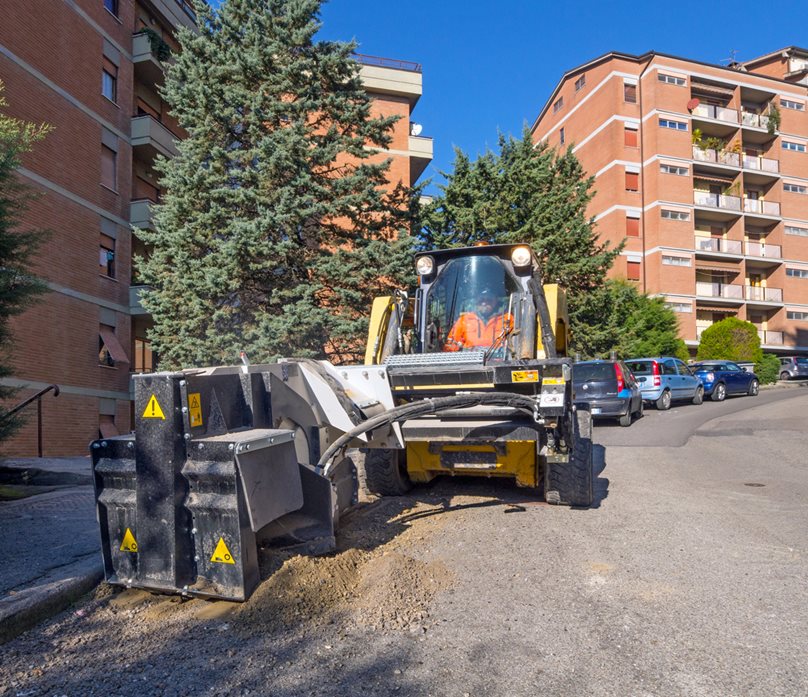

RW 500: born for fiber optic
The RW 500 was recently purchased by I.S.A.C srl and chosen for its productivity and precision. We spoke with Corrado Buttò, site manager for I.S.A.C. srl during the excavation of a new fiber optics segment in Cormano (Milan).
News
